DEEP CYCLE GEL BATTERY

DCG SERIES-KOYAMA DEEP CYCLE GEL BATTERY

KOYAMA Deep-Cycle Gel(DCG)batteries are maintenance free and require no watering, While providing you with the unmatched quality and power of Koyama’s advanced deep cycle gel technology .Koyama offers a complete portfolio of Deep-Cycle Gel(DCG) battery, featuring these benefits: Long-lasting runtime and battery life in the most demanding of applications;

Proprietary Gel formulation prevents stratification;

Superior engineering offers exceptional durability;



Koyama deep cycle Gel battery delivers superior power in renewable energy applications. Deep cycle gel batteries provide customers long lasting runtime and battery life for the most demanding applications.

Selling price:
$0.00
Product Detail

FEATURES & BENEFITS



-Non-spillable and maintenance free

-Flame arresting one-way pressure relief vent prevents buildup and is optimized for high-power density.

-Low internal resistance for higher discharge current and higher charging efficiency.

-No watering required.

-Manufactured ABS case

-Horizontal and vertical installation

-Less than 3% of self-discharge monthly

-99% recyclable



APPLICATIONS:

- Solar & Renewable Energy

-Floor Cleaning Machines

- Aerial Work Platforms

 -Marine & Boating

 -Recreational Vehicles

 -Golf Carts and Utility Vehicles



TECHINICAL SPECIFICATION:

Model   No Industry No Rated Voltage(V) Capacity (Ah) Dimension Weight Terminal
Length Width Height Total   Height kg
mm mm mm mm
6V DEEP CYCLE GEL BATTERY
DCG200-6 27 6 200 306 168 220 226 30.1 T5-M8

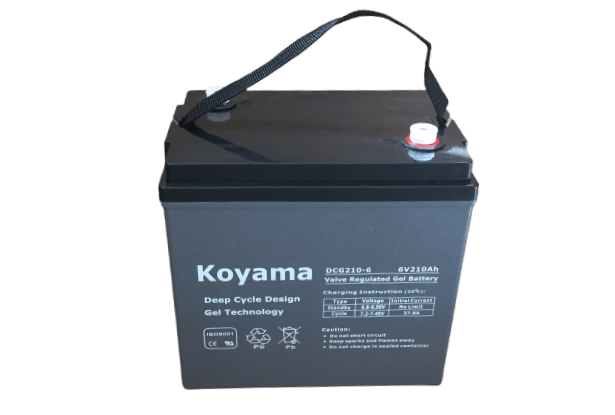

DCG210-6 GC2/T605 6 210 260 180 246 252 29.6 T5-M8
DCG210-6DT GC2/T605 6 210 260 180 246 266 29.9 DT-M8
DCG220-6 27 6 220 306 168 220 226 31.6 T5-M8
DCG225-6 DIN/TE35 6 225 243 187 275 275 30.6 T5-M8
DCG225-6AP DIN/TE35 6 225 243 187 275 275 30.6 AP

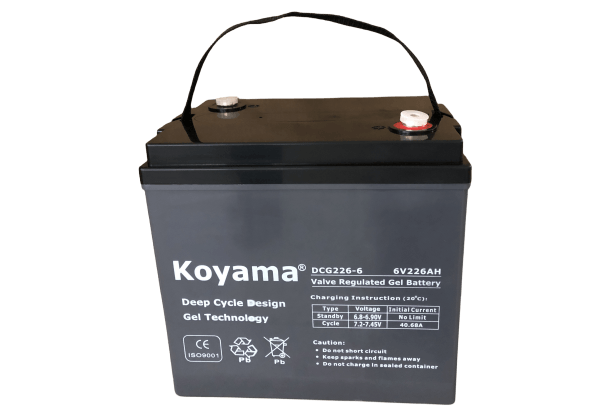

DCG226-6 GC2/T105 6 226 260 180 247 252 30.2 T5-M8
DCG226-6AP GC2/T105 6 226 260 180 247 268 30.2 AP
DCG226-6DT GC2/T105 6 226 260 180 247 266 30.2 DT-M8
DCG250-6 T145 6 250 260 180 265 272 34.7 T5-M8
DCG250-6DT T145 6 250 260 180 265 285 34.7 DT-M8
DCG310-6 902/J305 6 310 295 178 346 350 46.2 T5-M8
DCG310-6DT 902/J305 6 310 295 178 346 365 46.5 DT-M8
DCG330-6 902/J305 6 330 295 178 346 350 46.8 T5-M8
DCG330-6DT 902/J305 6 330 295 178 346 365 47.1 DT-M8

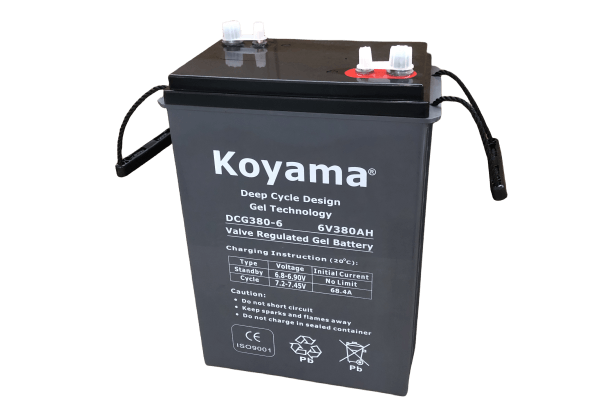

DCG380-6 L16P 6 380 295 178 404 408 55.4 T5-M8
DCG380-6DT L16P 6 380 295 178 404 424 55.7 DT-M8

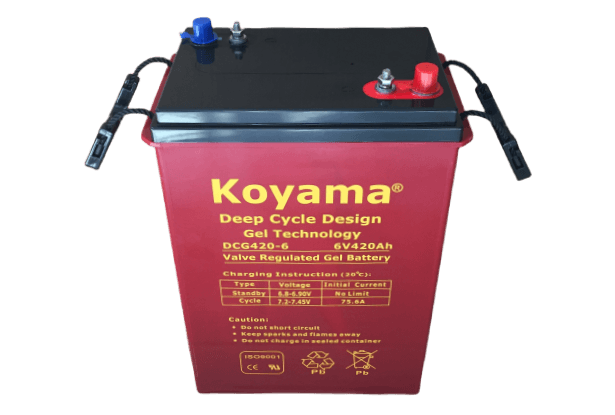

DCG420-6 L16H 6 420 295 178 404 408 57 T5-M8
DCG420-6DT L16H 6 420 295 178 404 424 57.3 DT-M8
8V DEEP CYCLE GEL BATTERY
DCG170-8 T875/890 8 170 260 182 266 271 34.8 T5-M8
DCG170-8DT T875/890 8 170 260 182 266 281 35.1 DT-M8
DCG200-8 GC8H 8 200 260 182 295 300 38.8 T5-M8
DCG200-8DT GC8H 8 200 260 182 295 315 39.1 DT-M8
12V DEEP CYCLE GEL BATTERY
DCG24-12 N/A 12 24 166 175 126 126 8.4 T2-M5
DCG26-12 N/A 12 26 165 126 174 174 8.1 T2-M6
DCG28-12 N/A 12 28 165 126 174 174 8.5 T2-M6
DCG35-12 U1 12 35 196 130 155 167 10.6 T2-M6
DCG40-12 U1L 12 40 198 166 174 174 14.1 T2-M6
DCG48-12 U1L 12 48 198 166 174 174 14.6 T2-M6

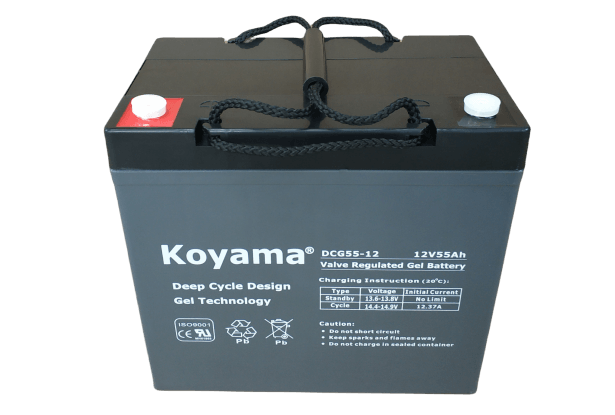

DCG55-12 22NF 12 55 229 138 208 212 16.1 T3-M6
DCG58-12 22NF 12 58 229 138 208 212 17.6 T3-M6

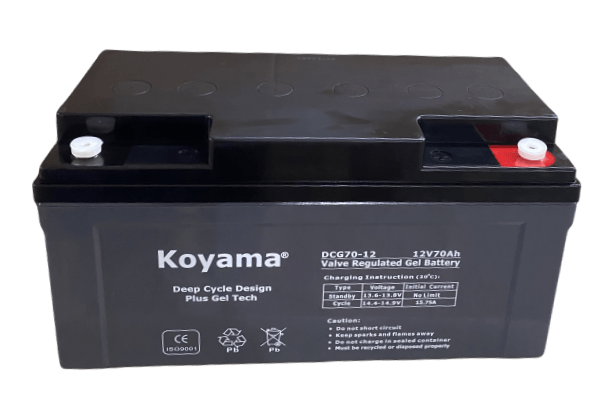

DCG70-12 93 12 70 350 167 178 178 23.4 T3-M6
DCG75-12 24 12 75 260 169 211 215 25.1 T3-M6/M8
DCG75-12DT 24 12 75 260 169 211 231 25.2 DT-M8

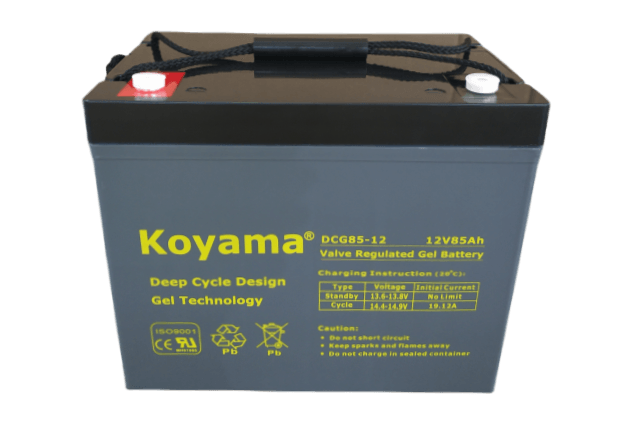

DCG85-12 24 12 85 260 169 211 215 26.2 T3-M6/M8
DCG85-12DT 24 12 85 260 169 211 231 26.3 DT-M8

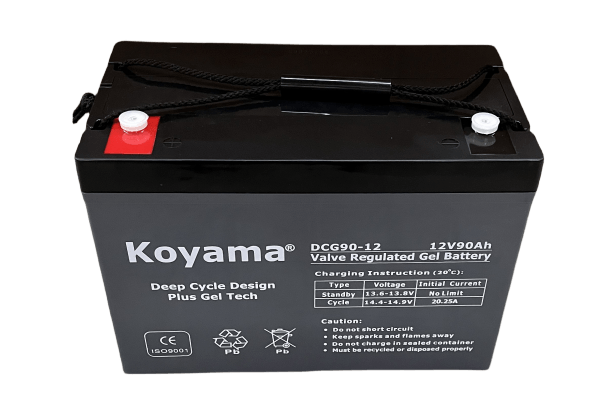

DCG90-12 27 12 90 307 169 211 216 28.3 T3-M6
DCG90-12DT 27 12 90 307 169 211 231 28.4 DT-M8
DCG100-12 27 12 100 307 169 211 216 29.7 T3-M6/M8
DCG100-12AP 27 12 100 307 169 211 230 30.3 AP
DCG100-12DT 27 12 100 307 169 211 231 30.4 DT-M8
DCG110-12 31 12 110 331 174 214 219 33 T4-M8
DCG110-12AP 31 12 110 331 174 214 235 33 AP
DCG110-12B 31 12 110 328 172 215 222 32.7 T4-M8
DCG110-12BAP 31 12 110 328 172 215 235 32.7 AP
DCG110-12DT 31 12 110 328 172 215 238 32.9 DT-M8
DCG120-12 N/A 12 120 407 173 210 233 39.5 T5-M8
DCG135-12 J150 12 135 341 173 283 288 41 T5-M8/M6
DCG135-12AP J150 12 135 341 173 283 302 41 AP
DCG135-12B DIN 12 135 341 173 281 281 41 T4-M8/M6
DCG135-12BAP DIN 12 135 341 173 281 284 41 AP
DCG150-12 N/A 12 150 484 171 241 241 45.7 T4-M8
DCG150-12B T1275 12 150 338 182 264 271 44.4 T5-M8
DCG180-12 4D 12 180 532 206 215 219 56.2 T4-M8
DCG200-12 4D 12 200 532 206 215 219 58.6 T4-M8
DCG215-12DT 921 12 215 381 179 350 370 61.7 DT-M8
DCG215-12BDT 921 12 215 381 179 350 370 61.7 DT-M8
DCG220-12 4D 12 220 522 240 219 223 65.2 T5-M8
DCG240-12 8D 12 240 520 268 203 207 71.3 T5-M8
DCG260-12 8D 12 260 520 268 220 226 77.1 T5-M8
