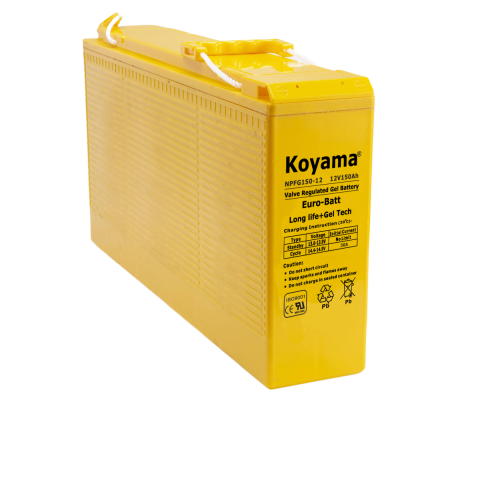

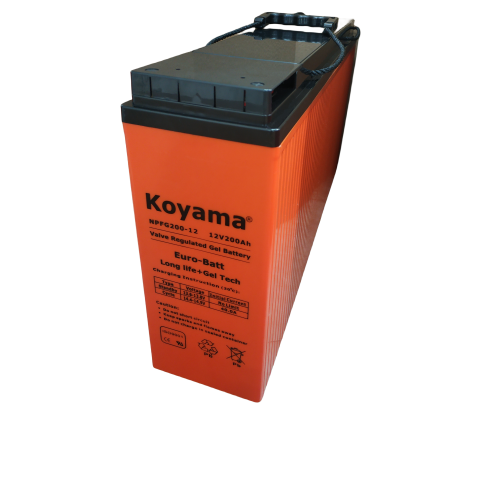

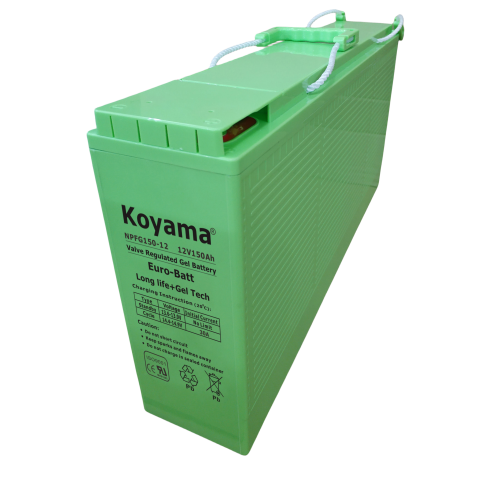

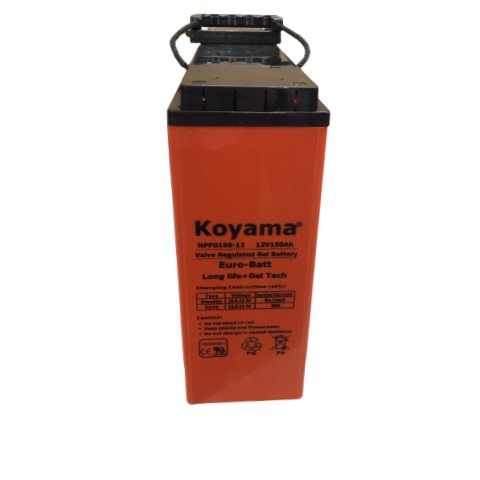

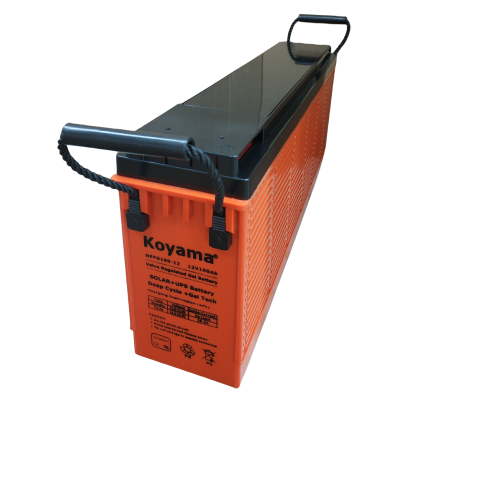

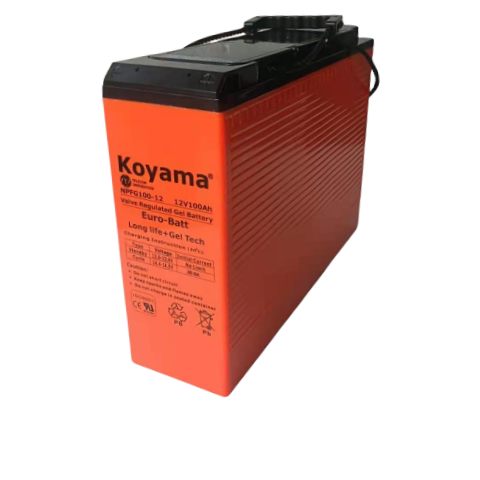

EUROBATT GEL BATTERY

KOYAMA NPFG series Eurobatt Gel Batteries are designed with front terminal structure. The perfect design ensures NPFG Gel battery the high reliability and makes the installation quite simple and safe when placed on a standard relay rack tray or in a closed cabinet. Adopt Flat plates with gel electrolyte. This new technology leverages on the advantages of the AGM and Gel technology to provide better cycle performance versus the AGM technology and a shorter time discharge performance as compared with the Gel technology. NPFG Series gel battery is designed with high energy density and suitable for 19", 23" rack or cabinet, and also offers options of top connection and side of monoblocs connection. NPFG Series battery can be equipped with central gas collection system according to the requirement of customer.

Selling price:

$0.00

Product Detail

BENEFITS & FEATURES

• Gel technology applied in NPFG range batteries.

• Front-access terminal connections for fast and easy installation and maintenance

• Suitable for 19", 23" rack or cabinet

• Excellent special lead-tin-calcium formula alloy for Grids and plates

• microporous glass mats in low resistance as separator

• Self-regulating pressure relief valve

• 12+ years expectant Life under full float service at 25℃(77℉)

APPLICATIONS:

• 19" and 23" standard power cabinet

• communication system, microwave station, mobile base station, data center,

radio / broadcasting station

• Power system of special network or local area network

• Emergency lighting and signal system

• UPS, Standby power, etc.

TECHNICAL SPECIFICATION:

Model No	Rated Voltage（V）	Capacity (Ah)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		kg	pound
			mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
Front Access Eurobatt GEL Battery for Telecommunications/IT Applications
NPFG55-12	12	55	277	10.91	106	4.17	222	8.74	222	8.74	16.6	36.5	T2
NPFG80-12	12	80	562	22.13	114	4.49	188	7.40	188	7.40	25.2	55.4	T3
NPFG100-12	12	100	507	19.96	110	4.33	228	8.98	228	8.98	29.7	65.3	T4
NPFG110-12	12	110	394	15.51	110	4.33	286	11.26	286	11.26	30.6	67.3	T4
NPFG110-12B	12	110	507	19.96	110	4.33	224	8.82	234	9.21	30.6	67.3	T4
NPFG125-12	12	125	551	21.69	110	4.33	240	9.45	240	9.45	38.0	83.6	T4
NPFG150-12	12	150	551	21.69	110	4.33	288	11.34	288	11.34	45.2	99.4	T4
NPFG155-12	12	155	560	22.05	125	4.92	280	11.02	280	11.02	45.4	99.9	T4
NPFG160-12	12	160	551	21.69	110	4.33	288	11.34	288	11.34	45.8	100.8	T4
NPFG175-12	12	175	546	21.50	125	4.92	321	12.64	321	12.64	53.9	118.6	T5
NPFG180-12	12	180	560	22.05	125	4.92	316	12.44	316	12.44	54.2	119.2	T5
NPFG180-12B	12	180	560	22.05	125	4.92	316	12.44	316	12.44	55.2	121.4	T5
NPFG190-12	12	190	560	22.05	125	4.92	316	12.44	316	12.44	56.0	123.2	T5
NPFG190-12B	12	190	560	22.05	125	4.92	316	12.44	316	12.44	57.2	125.8	T5
NPFG200-12	12	200	560	22.05	125	4.92	316	12.44	316	12.44	57.2	125.8	T5
NPFG200-12B	12	200	560	22.05	125	4.92	316	12.44	316	12.44	58.2	128.0	T5
