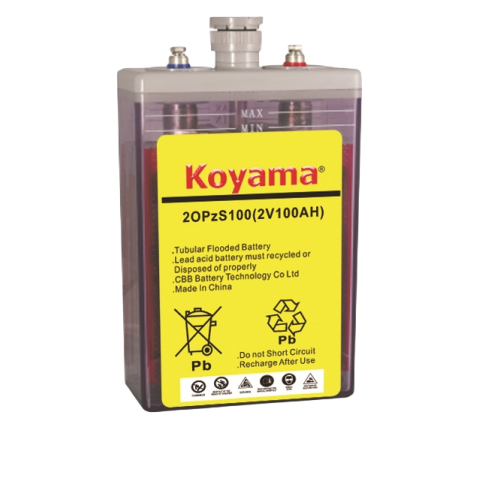

2V OPzS Tubular BATTERY

KOYAMA 2V OPzS Tubular Battery is a traditional tubular plate flooded battery which offers 20 years design life with a cycle life of 1800 cycles at 80% DOD according to IEC60896-11. This range is most suited for all standby power applications that require the highest levels of reliability and security.

The new type of liquid-rich lead-acid batteries for OPzS stationary applications is a new product with high performance and long life, which is developed in accordance with German standards. The design life of floating charging operation at 20°C is more than 20 years. The product has 27 specifications from 100Ah-3000Ah. The battery is a single body with a rated voltage of 2V per battery. The batteries are recommended by the State Ministry of information industry, the State Administration of radio, film and television, and the state power company.

Selling price:

$0.00

Product Detail

BENEFITS & FEATURES:

• 20 years design life at floating condition @ 20 °C

• Tubular positive plate with prolonged cycle life

• High operational reliability

• Lead calcium die cast grid with improved corrosion resistance capability

• Dry charged package and delivery ensure longer shelf life

• Explosive-proof with special designed vented plug

APPLICATIONS:

• Telecom, mobile, network, railway, airport and other kinds of backup power supply for communication and signal systems.

• Standby power supply for power system and nuclear power station.

• Solar energy and wind energy generate electricity.

• UPS, medical equipment, emergency lighting and other backup power.

TECHNICAL SPECIFICATION:

Model	Nominal Voltage (V)	Number of Terminals	Nomial Capacity(Ah)	Approx Dimension (mm/in)						Weight(kgs)
			10hr rate to 1.80Vpc @20°C	Length		Width		Height		Weight(kgs)
			10hr rate to 1.80Vpc @20°C	mm	in	mm	in	mm	in	Dry	Acid filled
2V Flooded Tubular OPzS Stationary Battery
4 OPzS200	2	2	216	103	4.06	206	8.11	403	15.87	12.4	17.2
5 OPzS250	2	2	270	124	4.88	206	8.11	403	15.87	14.8	20.8
6 OPzS300	2	2	324	145	5.71	206	8.11	403	15.87	17.1	24.3
5 OPzS350	2	2	390	124	4.88	206	8.11	520	20.47	19	26.9
6 OPzS420	2	2	468	145	5.71	206	8.11	520	20.47	22.1	31.5
7 OPzS490	2	2	546	166	6.54	206	8.11	520	20.47	25.2	36.1
6 OPzS600	2	2	660	145	5.71	206	8.11	695	27.36	31.9	70.18
7 OPzS700	2	4	817	210	8.27	191	7.52	695	27.36	40.4	57.6
8 OPzS800	2	4	880	210	8.27	191	7.52	695	27.36	44.4	61.3
9 OPzS900	2	4	1040	210	8.27	233	9.17	695	27.36	49.6	70.9
10 OPzS1000	2	4	1100	210	8.27	233	9.17	695	27.36	53.5	74.6
11 OPzS1100	2	4	1260	210	8.27	275	10.83	695	27.36	58.9	84.4
12 OPzS1200	2	4	1320	210	8.27	275	10.83	695	27.36	62.8	88
11OPzS1375	2	4	1590	210	8.27	275	10.83	845	33.27	74.5	109
12 OPzS1500	2	4	1680	210	8.27	275	10.83	845	33.27	80.2	114.3
13 OPzS1625	2	6	1910	214	8.43	399	15.71	820	32.28	91.2	140
14 OPzS1750	2	6	2040	214	8.43	399	15.71	820	32.28	95.8	144
15 OPzS1875	2	6	2150	214	8.43	399	15.71	820	32.28	101	149
16 OPzS2000	2	6	2240	214	8.43	399	15.71	820	32.28	105	151.5
17 OPzS2125	2	8	2470	212	8.35	487	19.17	820	32.28	119	180
18 OPzS2250	2	8	2600	212	8.35	487	19.17	820	32.28	125	184
19OPzS2375	2	8	2710	212	8.35	487	19.17	820	32.28	130	189
20 OPzS2500	2	8	2800	212	8.35	487	19.17	820	32.28	134	193
22 OPzS2750	2	8	3150	212	8.35	576	22.68	820	32.28	153	225
24 OPzS3000	2	8	3360	212	8.35	576	22.68	772	30.39	163	234.5
