Ordnance Tank Battery
12V/24V ORDNANCE /Military /Tank Batteries
KOYAMA light-weight, long-lasting, high performance Ordnance batteries are engineered to meet the specific, demanding requirements of military vehicles. The Koyama 12V/24V Battery is designed as a drop-in lead acid replacement for energy storage, engine start and silent watch applications. The Koyama 12V/24V battery leverages the systems engineering and manufacturing utilized in the commercial production of Koyama 12/24V Engine Start and storage Battery.
Features & Benefits:
+Longer Life
Designed to deliver significantly longer cycle life than lead acid resulting in lower total cost of ownership.
+Greater Charge Acceptance Rate
Rapid charge capable, no recovery period required after previous charge or discharge and significantly higher rate capability than lead acid.
+Lighter Weight
Approximately 50% lighter than lead acid batteries of equivalent capacity.
+Intelligent Battery Management System
On-board calculation of state of charge (SOC), state of health (SOH), diagnostics and precise current and voltage measurements.
+Excellent Safety
KOYAMA’s unique formula provides excellent abuse tolerance and multiple layers of protection that are employed at the chemistry, cell and system level.
+Advanced Temperature Control
Integrated battery heater for operation at temperatures below –30 °C (available in next-generation versions).
Technical Specifications:
| Model No | Rated Voltage（V） | Capacity (Ah) | Dimension | Weight | |||
| Length | Width | Height | Total Height | kg | |||
| mm | mm | mm | mm | ||||
|
TANK/ARMORED VEHICLE /ORDNANCE Battery |
|||||||
|

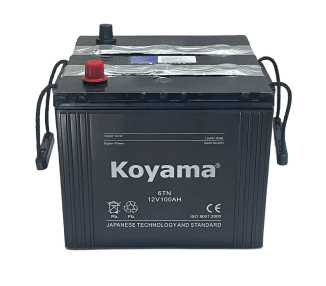

US-6TN |
12 |
100 |
272 |
260 |
200 |
225 |
19.5 |

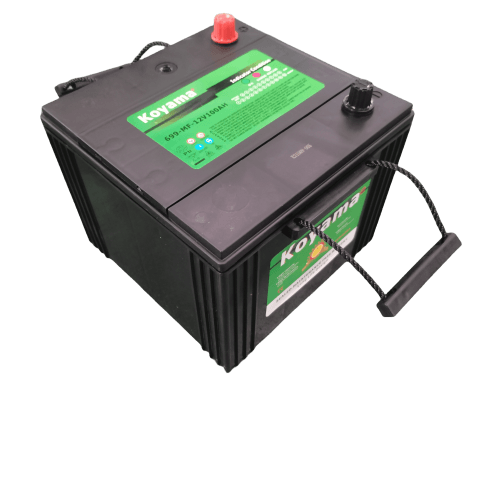

| US-6TN-MF | 12 | 100 | 272 | 260 | 200 | 225 | 27.5 |

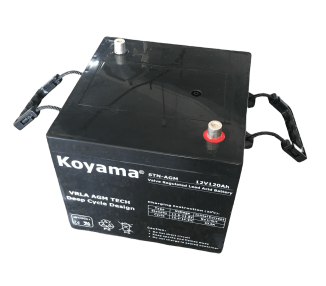

| US-6TN-AGM | 12 | 120 | 265 | 252 | 207 | 227 | 38 |
| US-6TN-GEL | 12 | 120 | 265 | 252 | 207 | 227 | 38.5 |
| 6-TKA-155a | 12 | 155 | 585 | 240 | 222 | 240 | 42 |
| 6-TKA-180a | 12 | 180 | 570 | 240 | 225 | 240 | 45 |

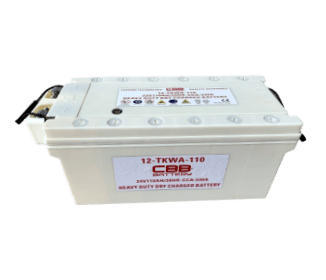

| 12-TKA-110 | 24 | 110 | 566 | 240 | 238 | 238 | 48 |
| 12-TKA-125 | 24 | 125 | 566 | 240 | 238 | 238 | 52 |

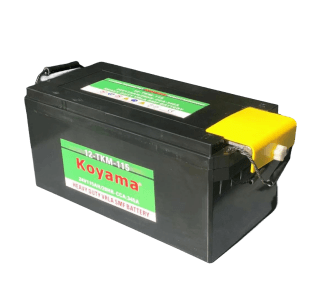

| 12-TKM-115AGM | 24 | 115 | 564 | 240 | 235 | 235 | 64 |
| 12-TKM-130AGM | 24 | 130 | 564 | 240 | 235 | 235 | 70 |
