JIS Dry Charged Battery

JIS Dry Charged Battery

KOYAMA DRY CHARGED CONVENTIONAL BATTERY



Koyama Dry Charge Auto Battery is designed to offer incredible cranking power, capacity and vibration resistance. It has advantages of longer life to hot or cold climate and lower discharge. Koyama Standard line fits most of Japanese, European and American Vehicles on the road in the world today. it includes passenger car and commercial batteries, and heavy-duty truck batteries.

Selling price:
$0.00
Product Detail

Main Features:

Instant Start & Excellent Dry Charge Performance.

Short pitch design for utmost performance during initial cranking of engine.

Special expander used for excellent starting at -15 °C.

All car batteries are aluminum sealed.

Special separators are used to reduce the internal resistance.

Minimum water loss during usage of battery.

Repeated cranking performance without drop in capacity.

High Rate of Discharge characteristics compatible to the cranking current of the vehicle.

High Quality Polypropylene containers for long life of battery.

Designed for high performance vehicles with extreme high power demands.

High cold cranking ability at sub zero temperature.

Exceeds original equipment (OE) requirements.



Applications:

For passenger car

KOYAMA standard line for passenger-car fits most of Japanese,European and American Vehicles on the road in the world today.

For Van & Suv

KOYAMA Standard line for light-truck ,VAN & SUV is designed to offer incredible cranking power,capacity and vibration resistance feature.

For Heavy Duty Truck

KOYAMA Standard line for Heavy-Duty trucks is resstance to vibration and offers outstanding service life to hot and cold climate.



TECHNICAL SPECIFICATION:

JIS: Dry-charge Automotive Batteries & Heavy Duty Batteries
JIS Group New Type  Old Type    Cap. (20h)  R.C.  CCA            Overall Dimensions (mm)  Lay-out  Terminal Weight
 (Ah) min. (A) L W H TH (Kgs)
A19 26A19R 12N24-4 24 42 230 184 125 160 170 1 Flange 6
26A19L 12N24-3 24 42 230 184 125 160 170 0 Flange 6
B20 32B20R NS40(S) 32 46 250 196 130 165 190 1   B  6.5
32B20L NS40L(S) 32 46 250 196 130 165 190 0   B  6.5
36B20R  NS40Z(S) 36 46 270 198 128 200 220 1   B  7
36B20L NS40ZL(S) 36 46 270 198 128 200 220 0   B  7
B24 32C24R N40 40 72 280 240 132 200 220 1 A 7.8
32C24L N40L 40 72 280 240 132 200 220 0 A 7.8
46B24R NS60(S) 45 70 360 240 132 200 220 1 B( A) 8.5
46B24L NS60L(S) 45 70 360 240 132 200 220 0 B( A) 8.5
D20 50D20R   50 80 370 200 170 200 220 1 A 8.8
50D20L   50 80 370 200 170 200 220 0 A 8.8
D26 48D26R N50 50 80 370 260 170 200 220 1 A 9.8
48D26L N50L 50 80 370 260 170 200 220 0 A 9.8
55D26R N50Z 60 103 440 260 170 200 220 1 A 10.4
55D26L N50ZL 60 103 440 260 170 200 220 0 A 10.4
65D26R NS70 65 113 460 260 170 200 220 1 A 11.3
65D26L NS70L 65 113 460 260 170 200 220 0 A 11.3
80D26R NX110-5 70 134 580 260 170 200 220 1 A 12
80D26L NX110-5L 70 134 580 260 170 200 220 0 A 12
D23 55D23R   60 100 450 230 170 204 225 1 A 10.4
55D23L   60 100 450 230 170 204 225 0 A 10.4
65D23R   65 112 460 230 170 204 225 1 A 11.3
65D23L   65 112 460 230 170 204 225 0 A 11.3
D31 65D31R N70 70 134 580 310 170 200 225 1 A 12.5
65D31L N70L 70 134 580 310 170 200 225 0 A 12.5
75D31R N70Z 75 137 590 310 170 200 225 1 A 13.3
75D31L N70ZL 75 137 590 310 170 200 225 0 A 13.3
95D31R NX120-7 80 160 620 310 170 200 225 1 A 13.9
95D31L NX120-7L 80 160 620 310 170 200 225 0 A 13.9
105D31R NS100 90 170 680 310 170 200 225 1 A 14.5
105D31R NS100L 90 170 680 310 170 200 225 0 A 14.5
    N90 90 170 680 355 175 190 215 1 A 14.5
  N90L 90 170 680 355 175 190 215 0 A 14.5
6TN US-6TN US-6TN 100 176 750 272 260 200 225 2 A 17.8
US-6TL US-6TL 100 183 750 272 260 200 225 0 A 17.8

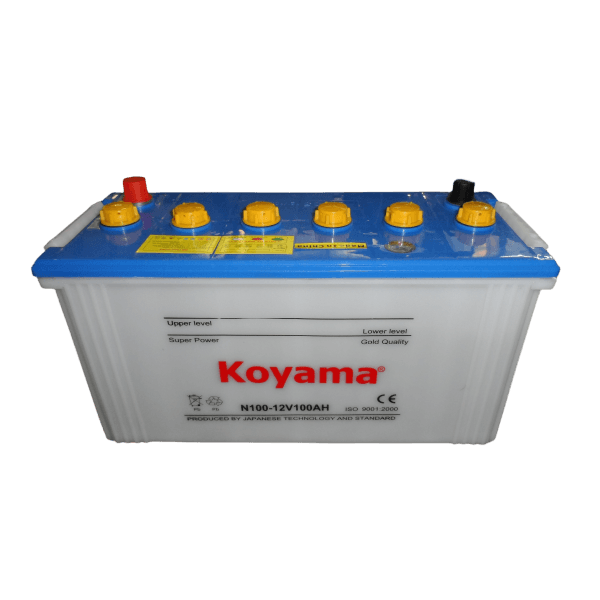

E41 95E41R N100 100 186 720 404 172 205 225 1 A / F 15.9
95E41L N100L 100 186 720 404 172 205 225 0 A / F 15.9
105E41R N100Z 105 204 750 404 172 205 225 1 A / F 16.9
105E41L N100ZL 105 204 750 404 172 205 225 0 A / F 16.9
115E41R NS120 110 215 780 404 172 205 225 1 A / F 17.6
115E41L NS120L 110 215 780 404 172 205 225 0 A / F 17.6

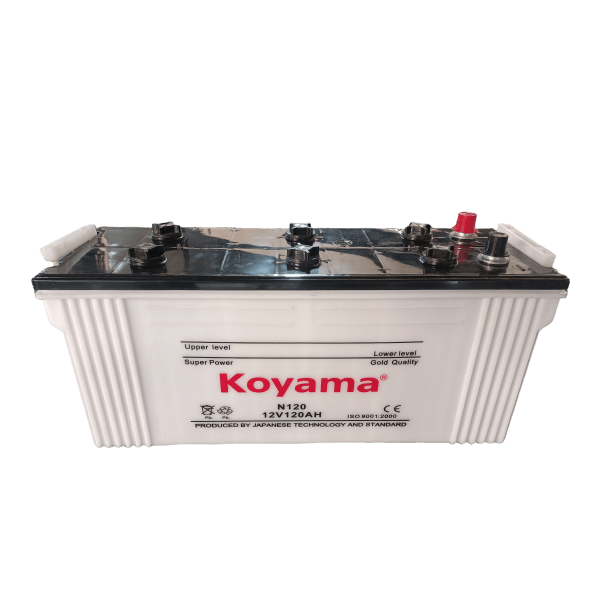

F51 115F51 N120 120 228 810 506 180 210 230 4 A / F 19.4
145F51 NS150 135 250 830 506 180 210 230 4 A / F 20.3

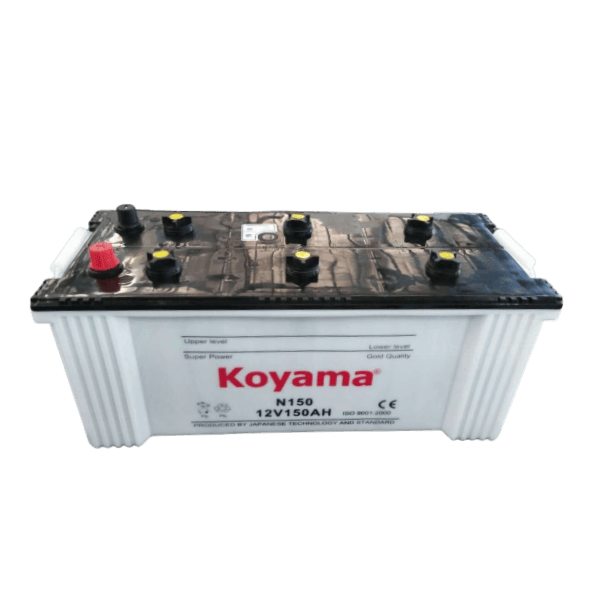

G51 145G51 N150 150 300 1020 506 220 210 230 4 A / F 22.8
165G51 NS200 165 329 1150 506 220 210 230 4 A / F 23.5
195G51 N180 180 360 1200 506 220 210 230 4 A / F 24.6

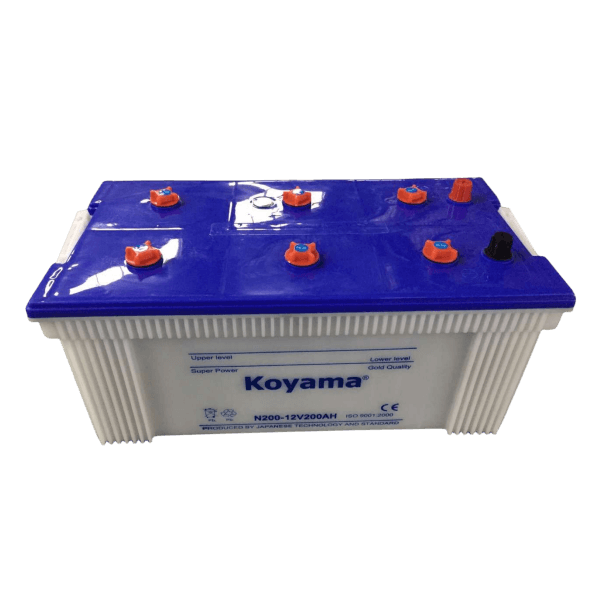

H52 210H52 N200 200 390 1380 506 265 215 235 4 A / F 29.8
225H52 N220 220 410 1400 506 265 215 235 4 A / F 31.1
N250 N250 250 420 1500 525 280 225 255 4 A / F 34.8
