DIN Dry Charged Battery

KOYAMA DRY CHARGED CONVENTIONAL BATTERY

Koyama DIN Dry Charge Auto Battery is designed to offer incredible cranking power, capacity and vibration resistance. It has advantages of longer life to hot or cold climate and lower discharge. Koyama Standard line fits most of Japanese, European and American Vehicles on the road in the world today. it includes passenger car and commercial batteries, and heavy-duty truck batteries.

Selling price:

$0.00

Product Detail

Main Features:

Instant Start & Excellent Dry Charge Performance.

Short pitch design for utmost performance during initial cranking of engine.

Special expander used for excellent starting at -15 °C.

All car batteries are aluminum sealed.

Special separators are used to reduce the internal resistance.

Minimum water loss during usage of battery.

Repeated cranking performance without drop in capacity.

High Rate of Discharge characteristics compatible to the cranking current of the vehicle.

High Quality Polypropylene containers for long life of battery.

Designed for high performance vehicles with extreme high power demands.

High cold cranking ability at sub zero temperature.

Exceeds original equipment (OE) requirements.

Applications:

For passenger car

KOYAMA standard line for passenger-car fits most of Japanese,European and American Vehicles on the road in the world today.

For Van & Suv

KOYAMA Standard line for light-truck ,VAN & SUV is designed to offer incredible cranking power,capacity and vibration resistance feature.

For Heavy Duty Truck

KOYAMA Standard line for Heavy-Duty trucks is resstance to vibration and offers outstanding service life to hot and cold climate.

TECHNICAL SPECIFICATION:

DIN: Dry-charge Automotive Batteries
EN & DIN Number	Capacity	R.C.	CCA	Dimensions (mm)				Layout	Termi.	Weight
EN & DIN Number	C20(Ah)	(min.)	(EN)	T	W	H	TH	Layout	Termi.	(Kgs)
53520	35	52	330	198	128	200	220	0	B	6.8
53522	35	52	330	198	128	200	220	1	B	6.8
53621	36	53	330	210	175	175	175	0	A	7.2
53638	36	53	330	210	175	175	175	1	A	7.2
54449	44	64	390	210	175	190	190	1	A	7.8
54459	44	64	390	210	175	190	190	0	A	7.8
54523	44	70	390	240	128	204	225	0	A	7.8
54524	44	70	390	240	128	204	225	1	A	7.8
54519	45	72	400	240	175	175	175	0	A	7.8
54549	45	72	400	240	175	175	175	1	A	7.8
55040	50	78	450	240	175	175	175	0	A	8.5
55559	55	78	480	240	175	190	190	0	A	9.4
55565	55	85	480	240	175	190	190	1	A	9.4
56030	60	95	500	240	175	190	190	0	A	11
56031	60	95	500	240	175	190	190	1	A	11
56048	60	98	500	261	175	205	225	1	A	10.7
56049	60	98	500	261	175	205	225	0	A	10.7
56068	60	100	500	230	170	200	220	0	A	10.7
56069	60	100	500	230	170	200	220	1	A	10.7
56318	63	100	530	275	175	175	175	0	A	11
56618	66	106	540	275	175	175	175	0	A	11
57024	70	130	560	261	175	205	225	1	A	12.5
57029	70	130	560	261	175	205	225	0	A	12.5
57412	74	134	600	275	175	190	190	0	A	11.7
57413	74	134	600	275	175	190	190	1	A	11.7

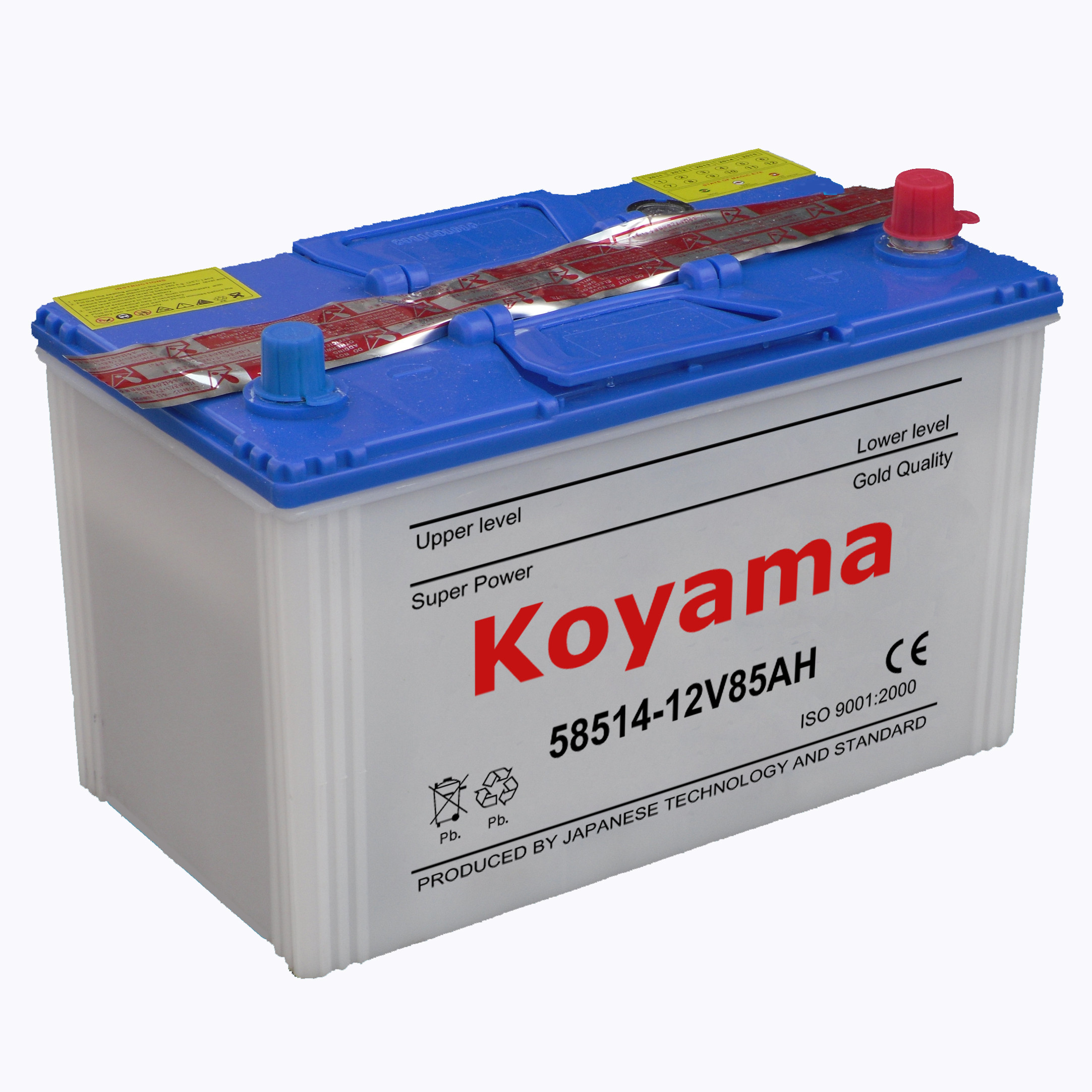

58514	85	95	650	307	175	202	225	0	A	12.5
58515	85	95	650	307	175	202	225	1	A	12.6

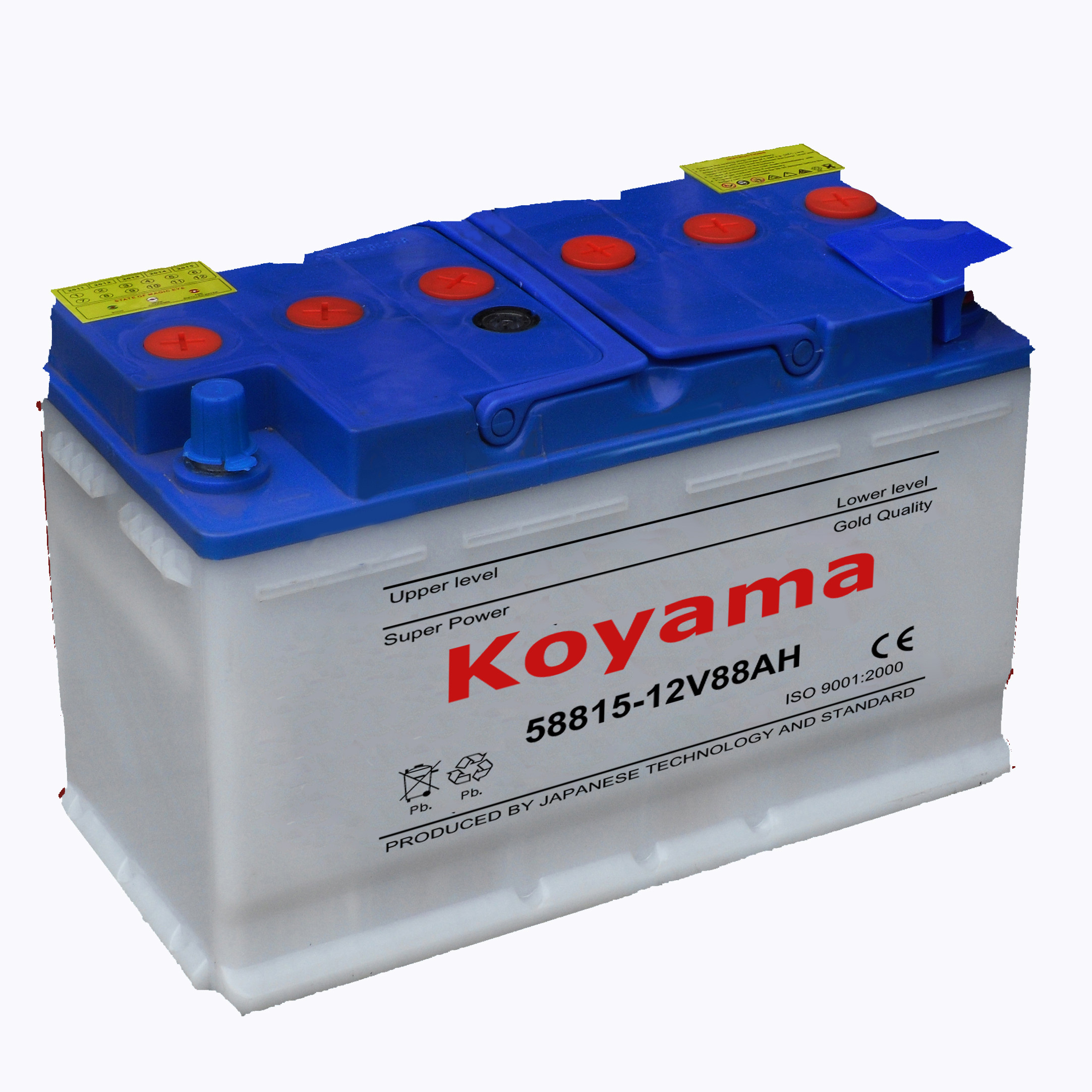

58815	88	144	680	350	175	175	174	0	A	13.9
58821	88	144	680	350	175	175	174	1	A	13.9
59017	90	164	690	355	175	190	213	1	A	14.5

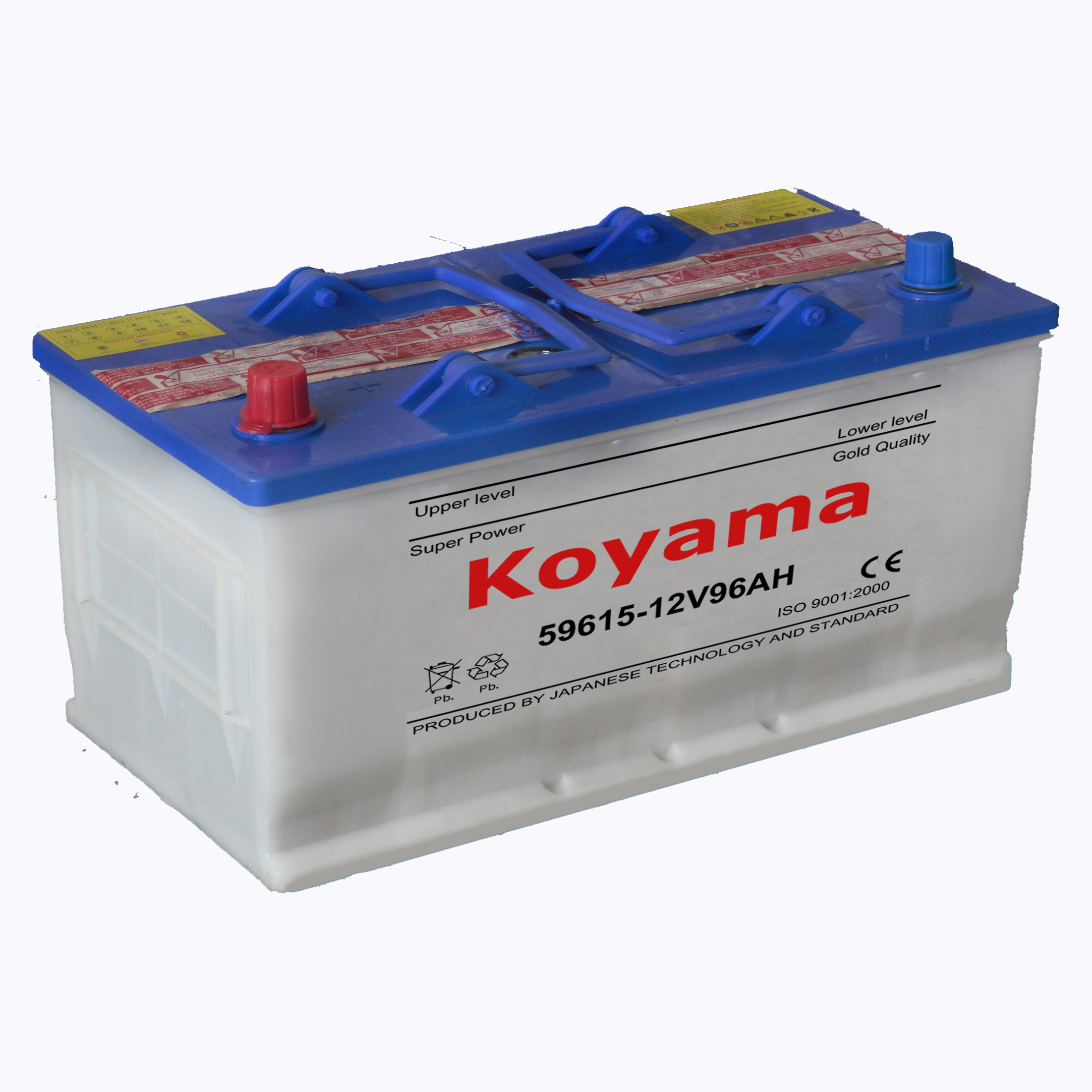

59615	96	170	690	355	175	190	213	1	A	15.3

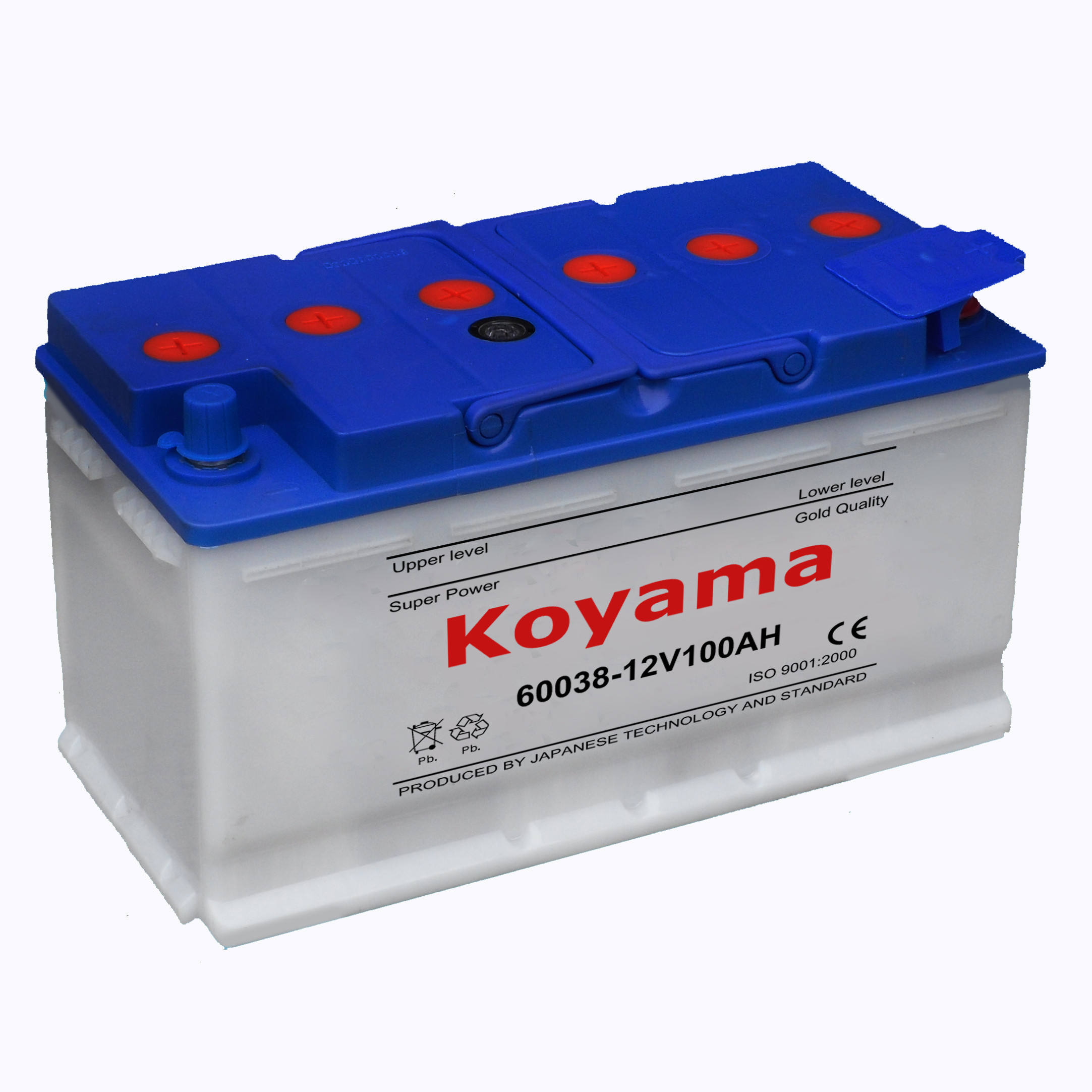

60038	100	176	760	353	175	190	190	0	A	16
60527	105	175	760	404	172	205	225	0	A / F	16.3
62033	120	218	810	506	180	205	228	4	A / F	20.5
63513	135	247	830	506	180	205	228	4	A / F	22.7
65031	150	294	1020	506	216	190	215	4	A / F	23.6
68029	180	353	1200	506	264	213	235	4	A / F	30.1
70027	200	371	1380	506	264	213	235	4	A / F	33
72018	220	396	1400	513	265	210	255	4	A / F	37
