GENERAL GEL BATTERY

KOYAMA NPG series gel battery is manufactured with special sheet separator and colloidal or foamed silica. The batteries use silica gel to immobilize the electrolyte inside the battery. The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 50% as compared with the AGM battery.

Selling price:

$0.00

Product Detail

BENEFITS & FEATURES

• High-quality colloid prepared with fumed silica ensures the electrolyte

liquid is uniformly distributed without stratification

• The electrolyte presents a gel state, without flowing or leakage, or recuction,

ensuring homogeneous reaction with the plate; Safe and maintenance free operation

• Large amounts of liquid; high heat capacity; good heat sinking capability;

• wide operation temperature

• Using lead calcium tin alloy, very low self discharge rate. Long service life

• Using lead calcium tin alloy, very low self discharge rate. Longer service life and better thermal stability.

APPLICATIONS:

• Solar and wind systems

• Cable TV; Telecommunications

• Wheelchair; Marine Equipment

• Military Equipment; Emergency lighting

• Power Plants;Medical Devices; Golf Cart

TECHNICAL SPECIFICATION:

Model No	Rated Voltage （V）	Capacity (Ah)	Dimension				Weight	Terminal Type
			Length	Width	Height	Total Height	kg
			mm	mm	mm	mm	kg
12V GEL BATTERY
NPG24-12	12	24	165	126	174	179	7.8	T2
NPG26-12	12	26	166	175	126	126	8.4	T2
NPG33-12	12	33	196	130	155	179	10.1	T3
NPG38-12	12	38	197	166	174	179	12.4	T2
NPG42-12	12	42	198	166	174	174	13	T2
NPG50-12	12	50	229	138	208	226	15.9	T3
NPG55-12	12	55	229	138	208	226	16.4	T3
NPG60-12	12	60	350	167	178	178	17.4	T3
NPG65-12	12	65	350	167	178	178	20.3	T3
NPG70-12	12	70	260	169	211	215	21.8	T3

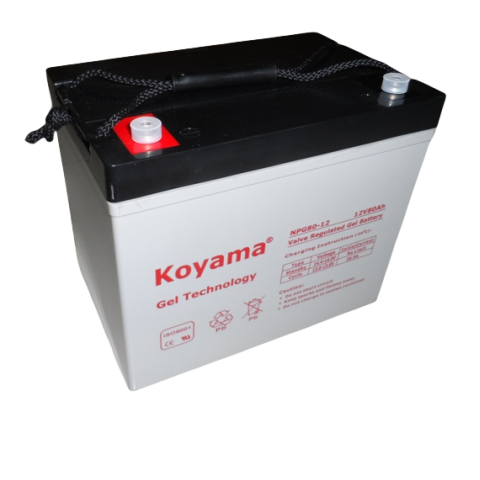

NPG80-12	12	80	260	169	211	215	23.5	T3

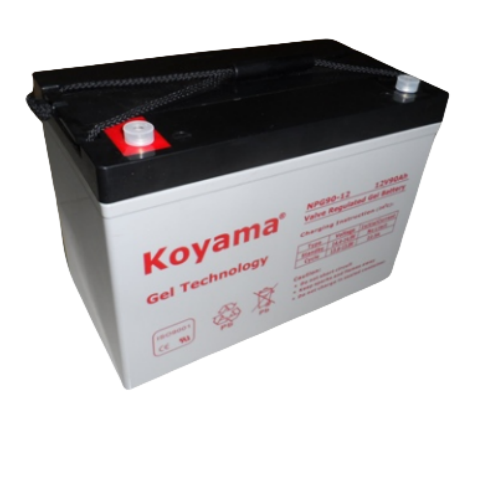

NPG90-12	12	90	307	169	211	227	26.7	T3

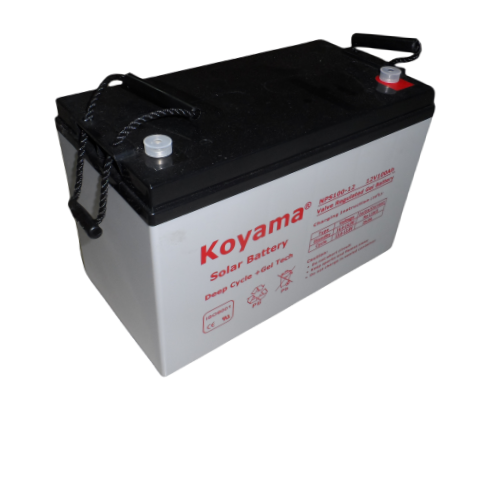

NPG100-12	12	100	331	174	214	219	29.2	T4

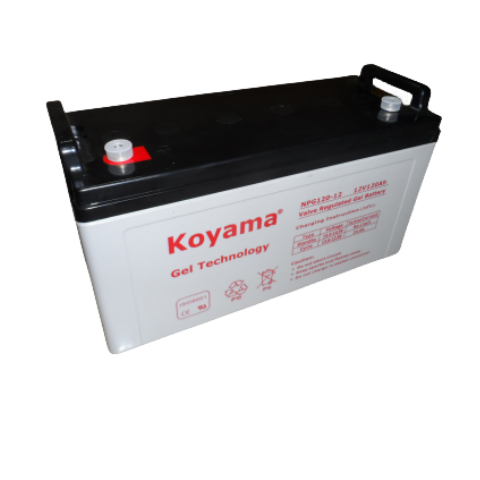

NPG120-12	12	120	407	174	210	233	33.2	T5

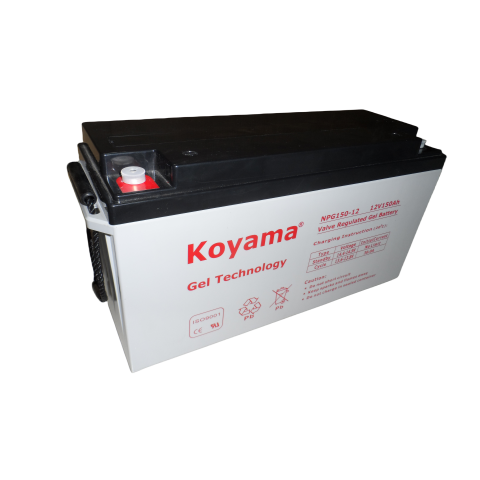

NPG150-12	12	150	484	171	241	241	41.2	T4
NPG160-12	12	160	532	206	216	221	48.5	T4
NPG180-12	12	180	532	206	216	221	52.4	T4

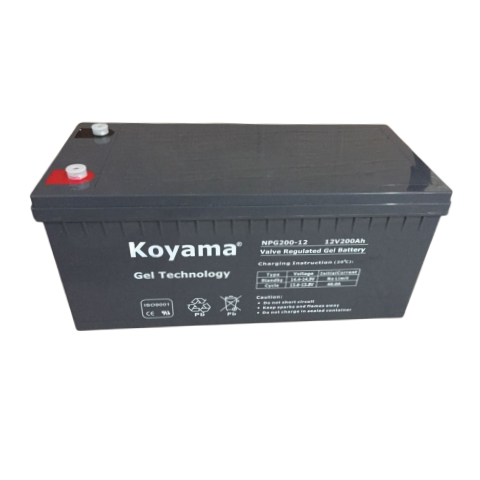

NPG200-12	12	200	522	240	219	244	58.5	T5
NPG220-12	12	220	522	240	219	244	60.7	T5
NPG250-12	12	250	520	268	220	245	70.3	T5
6V GEL BATTERY
NPG130-6	6	130	260	180	247	251	20.6	T5
NPG180-6	6	180	260	180	247	251	27.3	T5
NPG180-6B	6	180	306	168	220	226	28.3	T5
NPG200-6	6	200	260	180	247	251	29.6	T5
NPG200-6B	6	200	323	178	224	229	29.6	T5
2V GEL BATTERY
NPG100-2	2	100	171	72	205	230	5.9	T5
NPG150-2	2	150	171	102	206	230	8.2	T5
NPG200-2	2	200	170	106	330	367	13.1	T5
NPG300-2	2	300	171	151	330	365	18.6	T5
NPG400-2	2	400	211	176	329	367	26.3	T5
NPG500-2	2	500	241	171	349	368	31.2	T5
NPG600-2	2	600	301	175	331	366	37.9	T5
NPG800-2	2	800	410	176	330	365	51.8	T5
NPG1000-2	2	1000	472	172	338	355	62.3	T5
NPG1500-2	2	1500	401	351	342	378	97	T5
NPG2000-2	2	2000	491	351	343	383	131	T5
NPG2500-2	2	2500	712	353	341	382	181	T5
NPG3000-2	2	3000	712	353	341	382	191	T5
