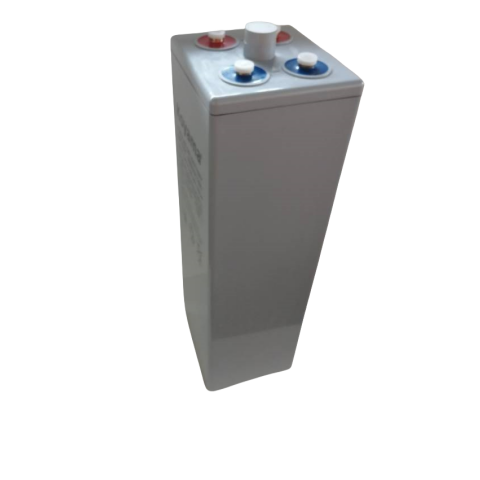

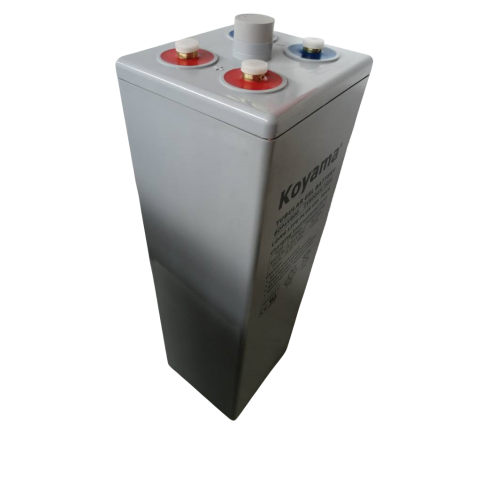

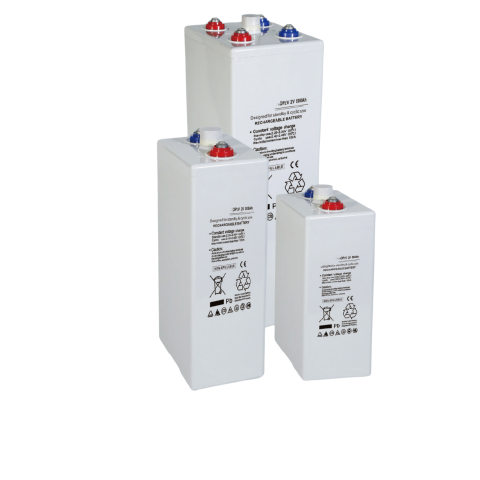

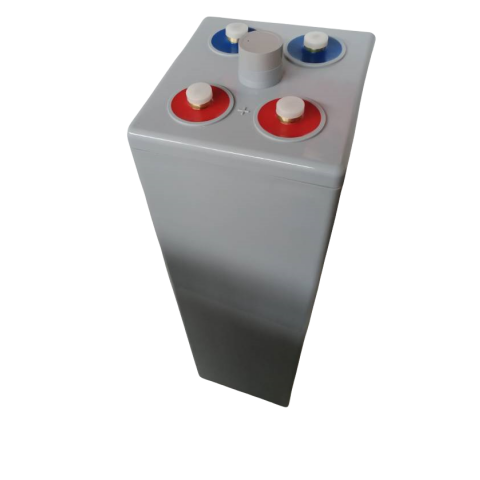

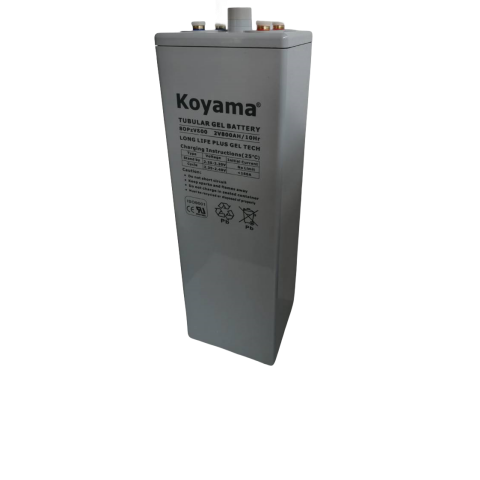

OPZV GEL BATTERY

KOYAMA 2V OPZV Series Tubular battery adopts traditional Tubular gel technology. The products are designed as standby power for communication, power, military and broadcast and television system with excellent deep cycle performance. The design float life is 18+ at 25℃ (77℉).

The OPZV range batteries are ensured the quality with KOYAMA QA system according to the ISO9001 and ISO14001 standard.

Selling price:

$0.00

Product Detail

BENEFITS & FEATURES

• Reliable seal performance, no acid spillage, recombination efficiency reach 99.9%

• Initial capacity above 100%, the remaining capacity above 94% after storage for 3 months (25℃)

• Low float charge voltage. Design (2.23V/cell, 25℃), extremely consistent float charge voltage

• Flexible connectors and convenient installation

• Wide operating temperature range from -15°C to 60°C

• Tubular positive plate with prolonged cycle life

• Fumed Silica gel electrolyte

• Lead Calcium die cast grid with improved corrosion resistance capability

• Low self-discharge rate and long shelf life (1 year at 25°C)

• Excellent deep discharge recovery capability

APPLICATIONS:

• Telecommunications

• Motive power applications

• Railway and mining markets

• Uninterruptible power supply (UPS)

• Solar energy storage application

• Other applications to provide integrated stored energy system.

TECHNICAL SPECIFICATION:

Model No	Rated	Rated Capacity	Approx. Dimensions					Terminal
	Voltage	10Hr@ 1.80V/cell	Length	Width	Height	TH	Weight
	(V)	(AH)	mm	mm	mm	mm	kg
Tubular Gel OPzV Battery
4OPzV200	2	200	103	206	355	390	18	M8
5OPzV250	2	250	124	206	355	390	22.5	M8
6OPzV300	2	300	145	206	355	390	25	M8
5OPzV350	2	350	124	206	471	506	28	M8
6OPzV420	2	420	145	206	471	506	32	M8
7OPzV490	2	490	166	206	471	506	38	M8
6OPzV600	2	600	145	206	646	681	46	M8
8OPzV800	2	800	191	210	646	681	65	M8
10OPzV1000	2	1000	233	210	646	681	74	M8
12OPzV1200	2	1200	275	210	646	681	91.8	M8
12OPzV1500	2	1500	275	210	796	831	112	M8
16OPzV2000	2	2000	399	214	772	807	152	M8
20OPzV2500	2	2500	487	212	772	807	187	M8
24OPzV3000	2	3000	576	212	772	807	225	M8
12V3OPzV100FT	12	100	551	110	287	287	39.7	M6
12V3OPzV120FT	12	120	551	110	287	287	42.3	M6
12V4OPzV150FT	12	150	549.5	124.5	315	315	51.7	M8
12V2OPzV40	12	40	260	168	208	230	19	T14
12V2OPzV45	12	45	260	168	208	214	19.5	T14
12V3OPzV60	12	60	260	168	208	229	23.7	T14
12V4OPzV80	12	80	330	173	212	218	30.8	M8
12V5OPzV100	12	100	408	177	225	225	38.3	M8
12V6OPzV120	12	120	483	170	238.5	238.5	45.7	M8
12V7OPzV140	12	140	532	207	214	220	54	M8
12V8OPzV160	12	160	532	207	214	220	59.3	M8
12V9OPzV180	12	180	522	240	218	224	67.4	M8
12V10OPzV200	12	200	522	268	220	226	75.9	M8
