EUROBATT AGM BATTERY

KOYAMA NPF (Front Access) Series Eurobatt Battery is especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast, easy installation and maintenance. This series is highly suited for telecom applications, UPS systems and other back up applications.

Selling price:

$0.00

Product Detail

BENEFITS & FEATURES

• 12 years design life at floating condition

• Wide operating temperature range from -15°C to 55°C

• Advanced paste formula with increased recharge efficiency

• Front access terminal with standard width for 19” and 23” ETSI racks

• 30% decreased float current lead to excellent high temperature resistance

• Thick flat plate with high Tin low Calcium alloy

• Low self-discharge rate

• Excellent deep discharge recovery capability

• Low self-discharge rate

• Excellent deep discharge recovery capability

APPLICATIONS:

• 19" and 23" standard power cabinet

• communication system, microwave station, mobile base station, data center, radio / broadcasting station

• Power system of special network or local area network

• Emergency lighting and signal system

• UPS, Standby power, etc.

TECHNICAL SPECIFICATION:

Model No	Rated Voltage（V）	Capacity (Ah)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		kg	pound
			mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
12V Front Access AGM Battery for Telecommunications/IT Applications

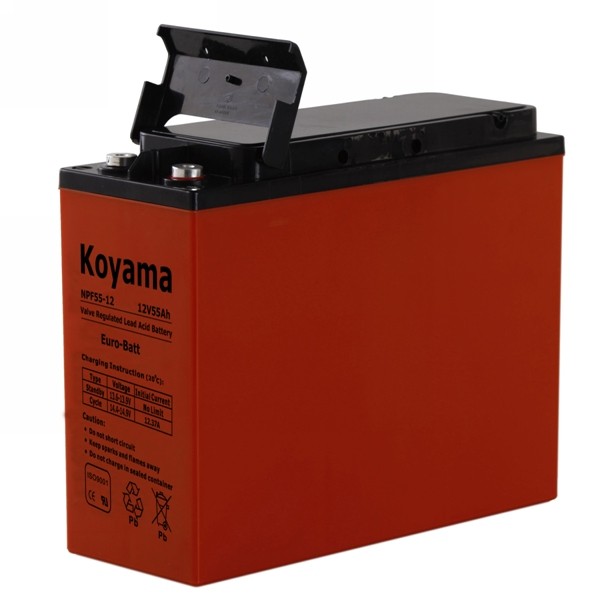

NPF55-12	12	55	277	10.91	106	4.17	222	8.74	222	8.74	16.5	36.3	T2-M6

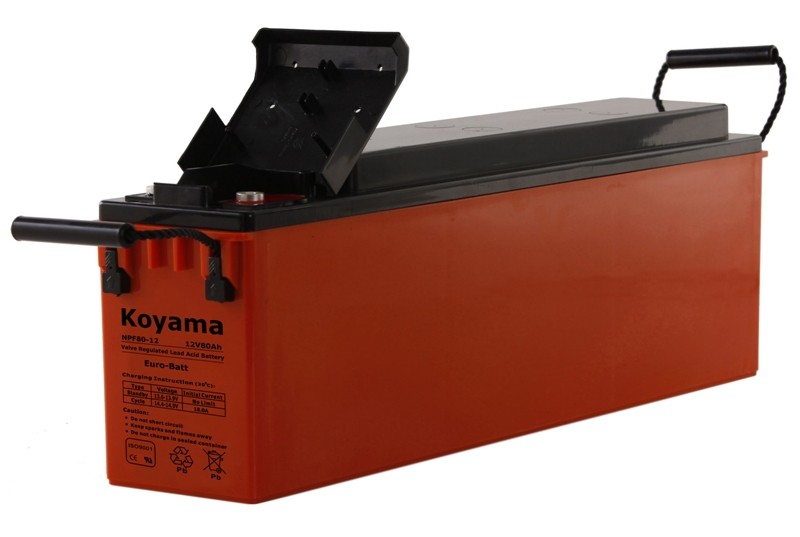

NPF80-12	12	80	562	22.13	114	4.49	188	7.40	188	7.40	25.0	55.0	T3-M6

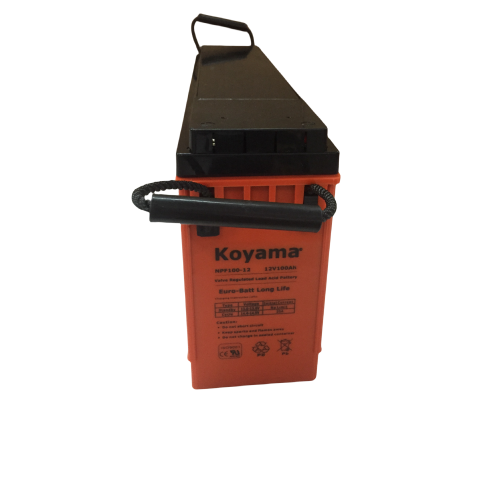

NPF100-12	12	100	507	19.96	110	4.33	228	8.98	228	8.98	29.5	64.9	T4-M8

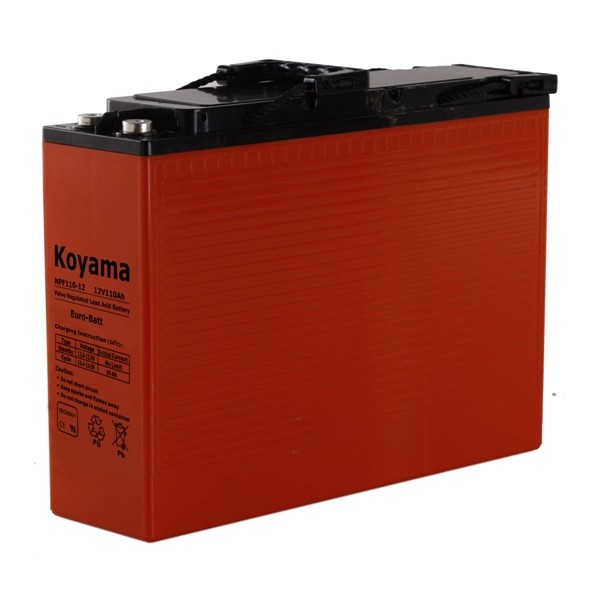

NPF110-12	12	110	394	15.51	110	4.33	286	11.26	286	11.26	30.5	67.1	T4-M8

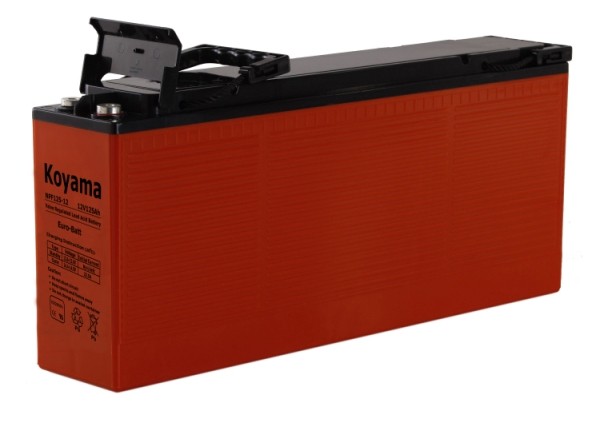

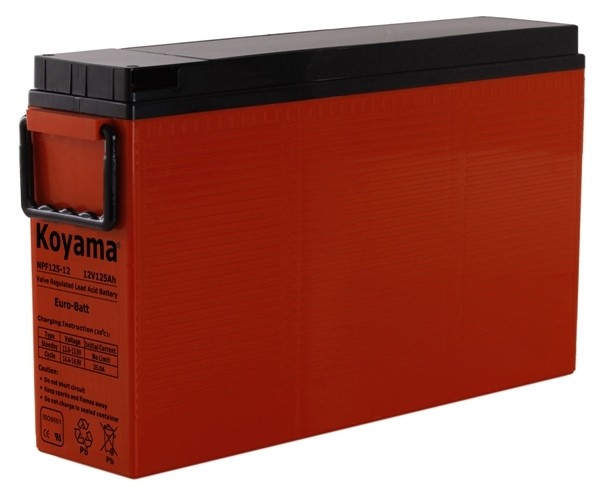

NPF125-12	12	125	551	21.69	110	4.33	240	9.45	240	9.45	37.8	83.2	T4-M8

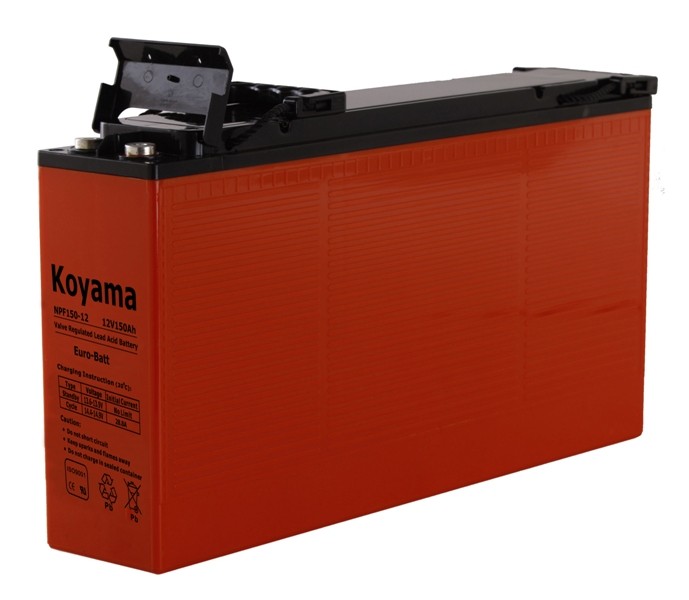

NPF150-12	12	150	551	21.69	110	4.33	288	11.34	288	11.34	45.0	99.0	T4-M8
NPF155-12	12	155	560	22.05	125	4.92	280	11.02	280	11.02	45.2	99.4	T4-M8

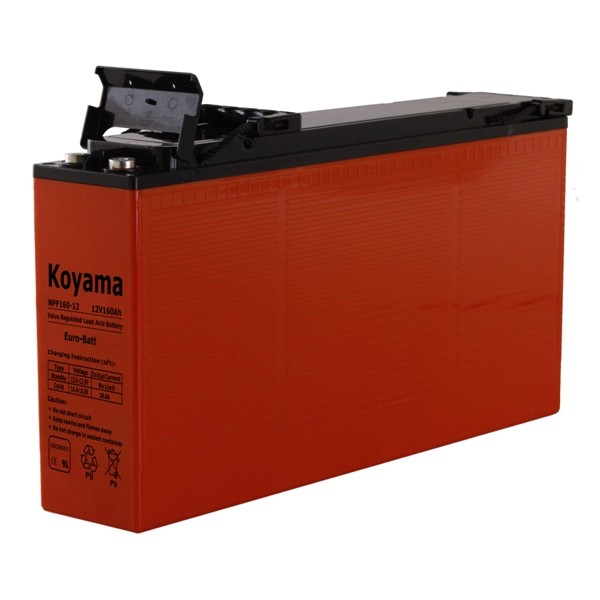

NPF160-12	12	160	551	21.69	110	4.33	288	11.34	288	11.34	45.6	100.3	T4-M8
NPF175-12	12	175	546	21.50	125	4.92	321	12.64	321	12.64	53.7	118.1	T5-M8

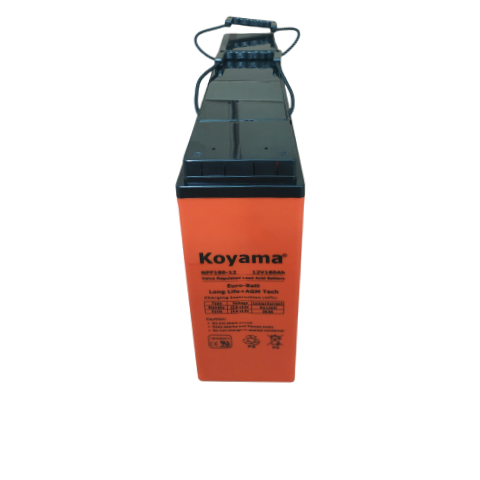

NPF180-12	12	180	560	22.05	125	4.92	316	12.44	316	12.44	54.0	118.8	T5-M8
NPF180-12B	12	180	560	22.05	125	4.92	316	12.44	316	12.44	55.5	122.1	T5-M8
NPF190-12	12	190	560	22.05	125	4.92	316	12.44	316	12.44	55.8	122.8	T5-M8
NPF190-12B	12	190	560	22.05	125	4.92	316	12.44	316	12.44	58.0	127.6	T5-M8
NPF200-12	12	200	560	22.05	125	4.92	316	12.44	316	12.44	57.0	125.4	T5-M8
NPF200-12B	12	200	560	22.05	125	4.92	316	12.44	316	12.44	59.0	129.8	T5-M8
