GENERAL AGM BATTERY

NP Series-VRLA AGM BATTERY

Koyama Battery NP (General Model) Series Valve Regulated Lead Acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system & deep cycle applications widely used in the fields of UPS, Emergency Lighting System, electric tools, deep cycle renewable energy etc.

NP series designed service life (25℃):0.8Ah-250ah: 6-12 years (depends on usage).

Selling price:

$0.00

Product Detail

Main Features:

• Sealed Construction (Non-Spillable Battery)

• Electrolyte Suspension System

• Gas Recombination

• Maintenance Free Operation, no need to add water

• Operation in any Orientation(except for the inverted position)

• Low Pressure Venting System

• Special lead calcium alloy, good corrosion resistance and high recovery capacity.

• Long Service Life

• Low Self Discharge, the self-discharge rate is below 3% per month

• Wide Operating Temperature Range: -15℃～50℃

• FAA and IATA approved as non-hazardous.

Applications

• Alarm Systems; Cable Television; Communications Equipment; Computers; Control Equipment

• Electronic Cash Registers; Electronic Test Equipment; Emergency Lighting Systems

• Fire & Security Systems; Geophysical Equipment; Marine Equipment; Medical Equipment

• Microprocessor Based Office machines; Portable Cine & Video Lights; Power Tools

• Telecommunication Systems; Television & Video Recorders

• solar & wind power system; Uninterruptible Power Supplies; Deep cycle renewable energy system

Technical Specification:

Model No	Voltage（V）	Capacity (Ah)	Dimension				Weight	Terminal Type
			Length	Width	Height	Total Height	kg
			mm	mm	mm	mm	kg
4V VRLA AGM Sealed Lead Acid Battery

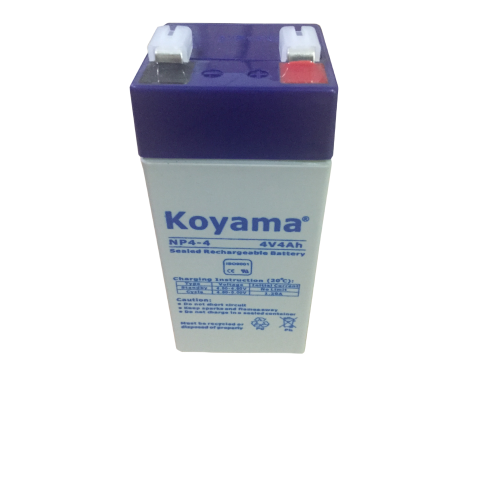

NP4-4	4	4	47	47	101	107	0.5	F1
6V VRLA AGM Sealed Lead Acid Battery
NP1.3-6	6	1.3	97	24	52	58	0.31	F1
NP3.3-6	6	3.3	134	34	60	66	0.59	F1
NP3.6-6	6	3.6	70	47	101	107	0.65	F1

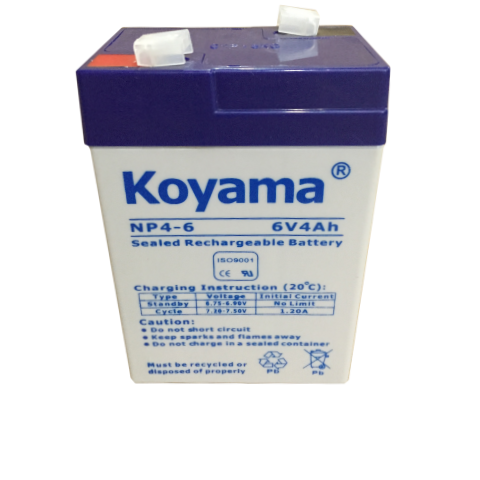

NP4-6	6	4	70	47	101	107	0.68	F1
NP4.5-6	6	4.5	70	47	101	107	0.75	F1
NP5-6Y	6	5	70	47	101	107	0.75	F1
NP5-6	6	5	70	47	101	107	0.8	F1
NP7-6	6	7	151	34	95	101	1.08	F1
NP8-6	6	8	151	34	95	101	1.16	F1
NP9-6	6	9	151	34	95	101	1.34	F1
NP10-6	6	10	151	50	94	100	1.63	F1
NP12-6	6	12	151	50	94	100	1.72	F1
NP130-6	6	130	260	180	247	251	20.5	T5
NP180-6	6	180	260	180	247	251	27.5	T5
NP180-6B	6	180	306	168	220	226	26	T5
NP200-6	6	200	260	180	247	251	29.5	T5
NP200-6B	6	200	323	178	224	229	29.5	T5
12V VRLA AGM Sealed Lead Acid Battery
NP1.3-12	12	1.3	97	43	52	58	0.5	F1
NP2-12	12	2	178	35	61	67	0.82	F1
NP3.3-12	12	3.3	134	67	61	67	1.32	F1

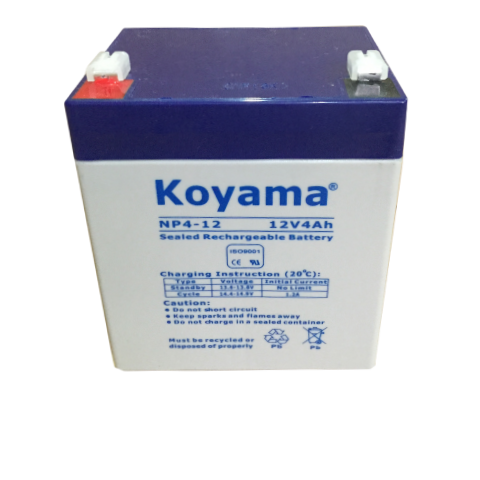

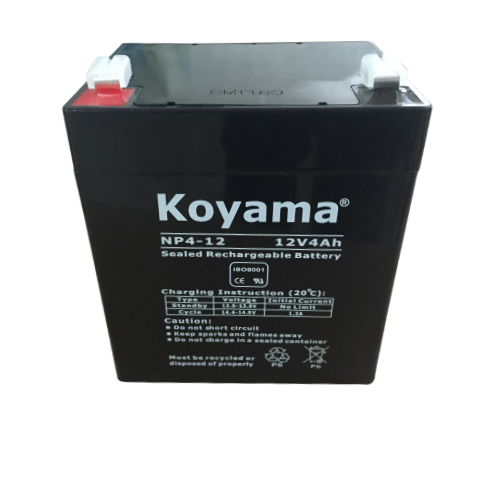

NP4-12	12	4	90	70	101	107	1.35	F1
NP4.5-12	12	4.5	90	70	101	107	1.48	F1
NP5-12	12	5	90	70	101	107	1.6	F1
NP5-12B	12	5	151	51	53	97	1.7	F2
NP6.5-12	12	6.5	151	65	94	100	1.95	F1

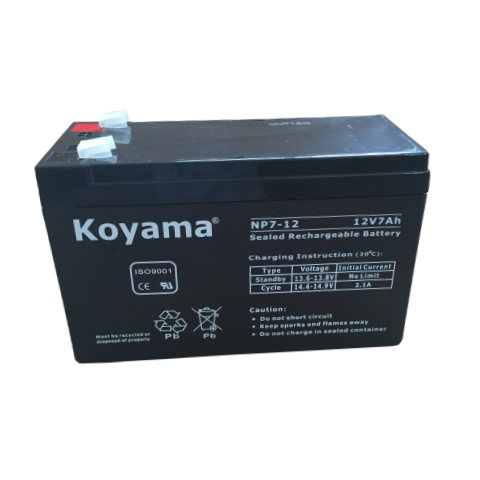

NP7-12	12	7	151	65	94	100	2.03	F1
P7.2-12	12	7.2	151	65	94	100	2.15	F1
NP7.5-12	12	7.5	151	65	94	100	2.22	F1
NP9-12	12	9	151	65	94	100	2.45	F2
NP9-12H	12	9	151	65	110	118	2.8	F2
NP10-12	12	10	152	99	96	102	3.2	F2

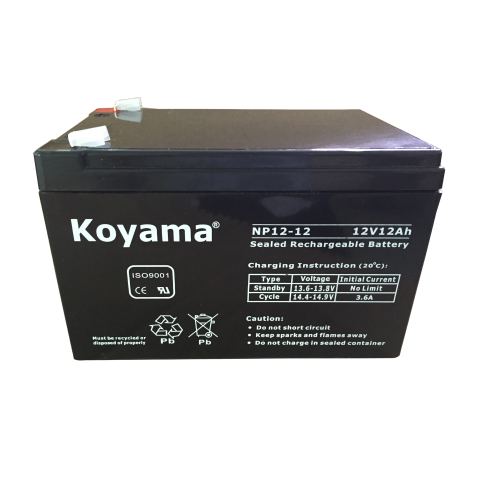

NP12-12	12	12	152	99	96	102	3.4	F2
NP15-12	12	15	152	99	96	102	3.8	F2

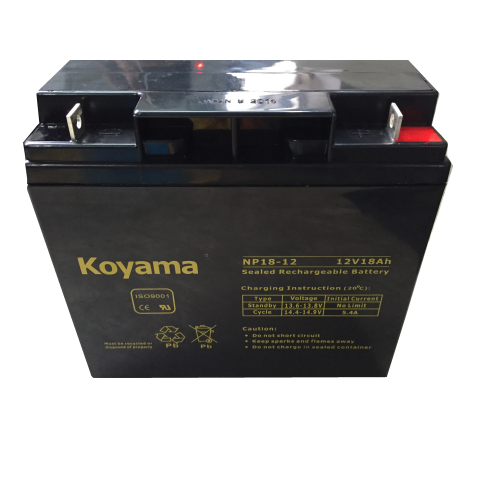

NP18-12	12	18	181	77	167	167	5.18	L1
NP20-12	12	20	181	77	167	167	6	L1
NP24-12	12	24	165	126	174	179	7.7	T2
NP26-12	12	26	166	175	126	126	8.3	T2
NP33-12	12	33	196	130	155	179	10	T3

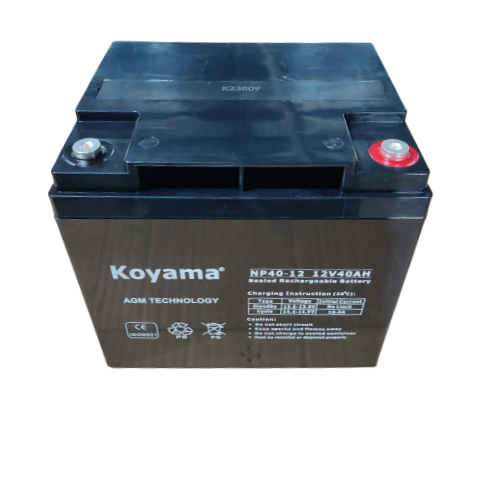

NP40-12	12	40	197	166	174	172	12.3	T2
NP42-12	12	42	198	166	174	174	12.9	T2
NP45-12	12	45	198	166	174	174	13.1	T2
NP50-12	12	50	229	138	208	212	15.8	T3
NP50-12B	12	50	258	134	200	200	15.5	L8

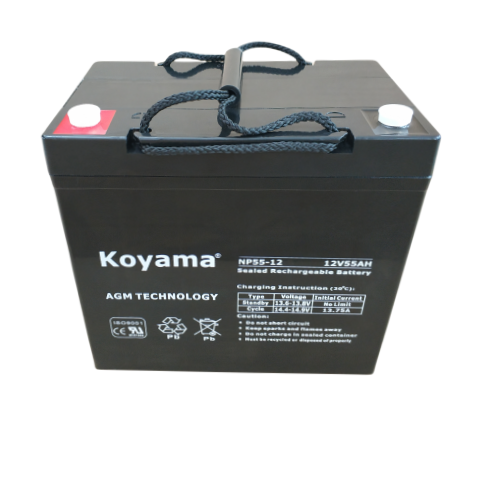

NP55-12	12	55	229	138	208	226	16.3	T3
NP60-12	12	60	229	138	208	226	17.3	T3
NP65-12	12	65	350	167	178	178	20.2	T3
NP70-12	12	70	350	167	178	178	21.3	T3
NP70-12B	12	70	260	169	211	215	21.7	T3
NP75-12	12	75	260	169	211	215	22	T3
NP80-12	12	80	260	169	211	231	23.3	T3
NP85-12	12	85	331	174	214	240	24.8	T4
NP90-12	12	90	307	169	211	227	26.5	T3

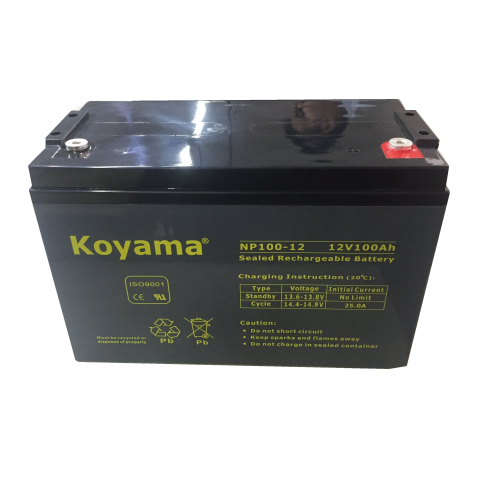

NP100-12	12	100	331	174	214	219	28	T4
NP120-12	12	120	407	174	210	233	33	T5

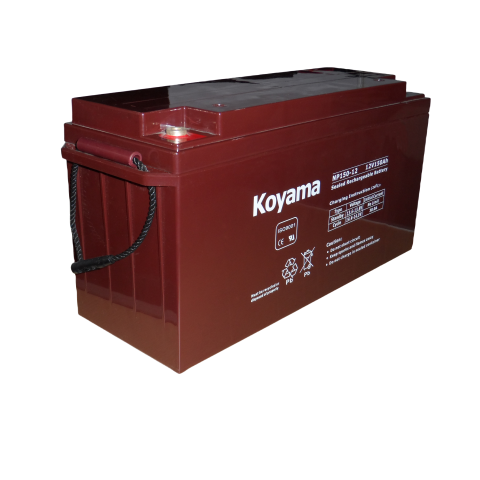

NP150-12	12	150	484	171	241	241	41	T4
NP160-12	12	160	532	206	216	240	48.3	T4
NP180-12	12	180	532	206	216	221	52.2	T4

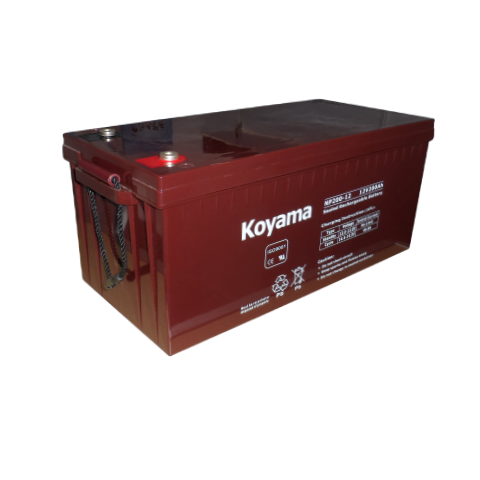

NP200-12	12	200	522	240	219	244	58.2	T5
NP250-12	12	250	520	268	220	245	70	T5
